Fluke 323
TRUE-RMS CLAMP METER
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $25.00 | $15.00 | $10.00 | $6.00 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $175.00 | $210.00 | $290.00 | $180.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 623 605 for fantastic long term hire rates.
Contact us on 1300 623 605 for fantastic long term hire rates.

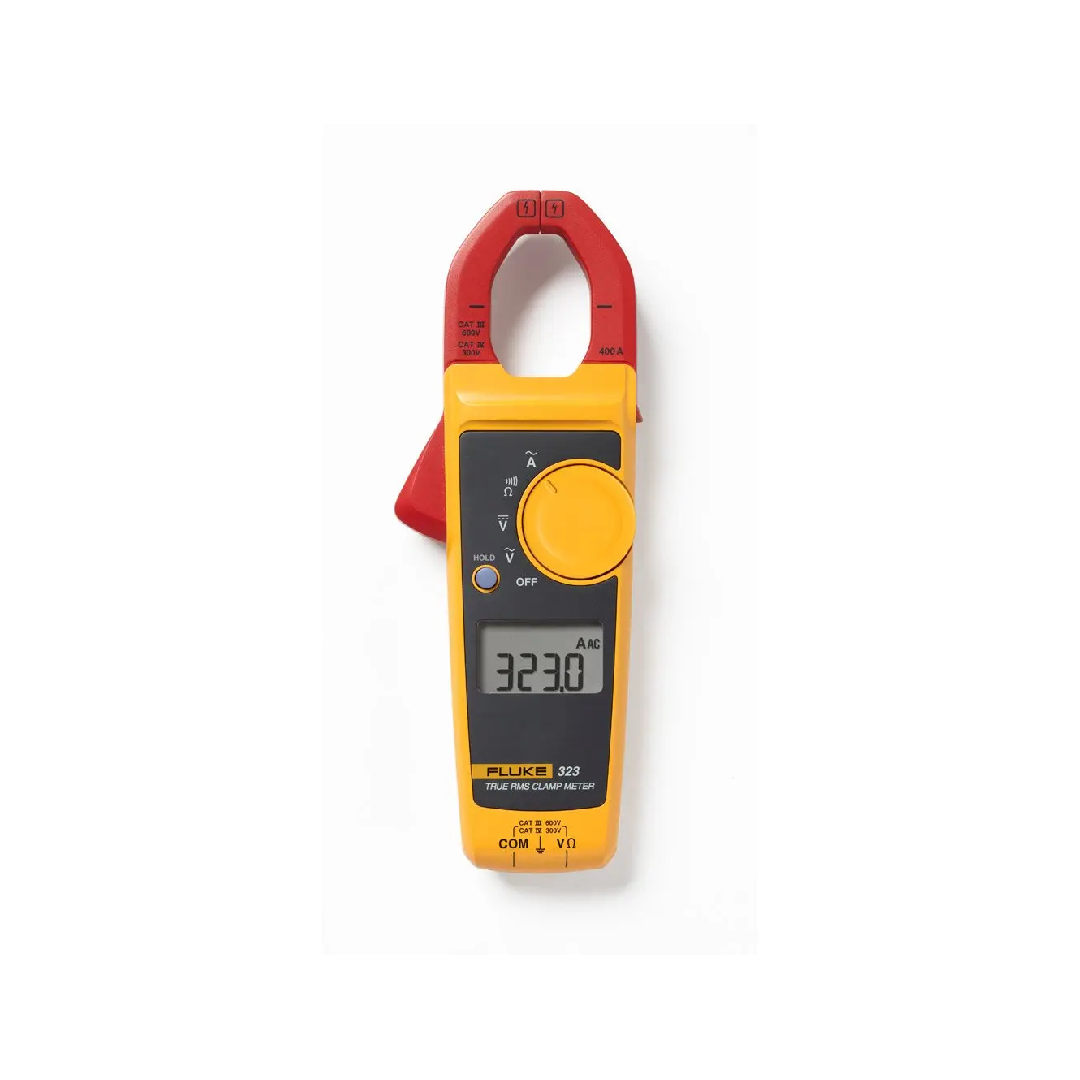

Product overview: Fluke 323 True RMS Clamp Meter
Fluke 323 True-RMS clamp meter delivers rugged reliable performance for general electrical
troubleshooting
The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians.
It includes True RMS measurements, optimized ergonomics, and large display for efficient troubleshooting.
It’s designed to perform in the toughest environments and provide noise-free, reliable results, so you can
trust it to help you confidently diagnose problems almost anywhere. Use it to verify the presence of load
current, AC voltage, and continuity of circuits, switches, fuses and contacts. Its slim, compact size and
rugged design make it well suited for measuring current up to 400 A in tight cable compartments.
The Fluke 323 comes with a two-year warranty and a soft carrying case.
Other useful features:
- Features slim, ergonomic design for measuring in tight cable compartments
- Presents measurements on a large, easy-to-read display
- Hold function captures a reading on the display
- Features a CAT III 600 V, CAT IV 300 V safety rating
- Comes with a two-year warranty and soft carrying case
Specifications: Fluke 323 True RMS Clamp Meter
| Specifications | ||
| AC current | Range | 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
| DC current | Range | – |
| Accuracy | – | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 Ω/ 4000 Ω |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 70 Ω | |
| Capacitance | – | |
| Frequency | – | |
| AC response | True-RMS | |
| Backlight | – | |
| Data hold | Yes | |
| Contact temperature | – | |
| Min/Max | – | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Weight | 265 g | |
| Category rating | CAT III 600 V CAT IV 300 V |
|
| Warranty | Two-year | |
