Fluke T6-1000

ELECTRICAL TESTER

DAILY RATES
Cost per Day	$25.00	$15.00	$10.00	$6.00
Duration (days)	1-7	8-14	15-29	30

TYPICAL HIRE PERIODS
Cost	$175.00	$210.00	$290.00	$180.00
Duration	7 Days	14 Days	29 Days	30 Days

Committing to 3, 6 or 12 months?
Contact us on 1300 623 605 for fantastic long term hire rates.

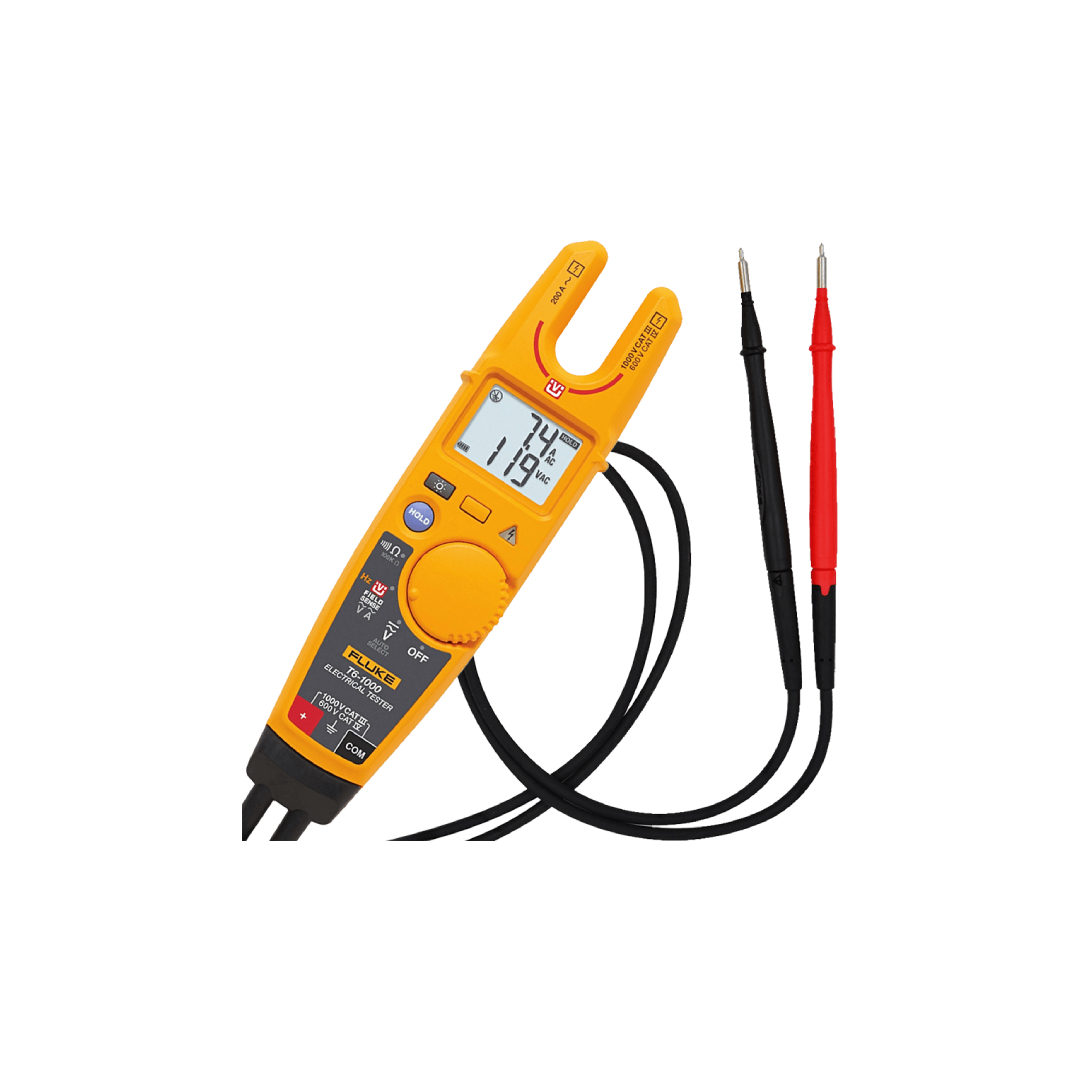

Product overview: Fluke T6-1000 Electrical Tester

Measure voltage without test leads

The Fluke T6-1000 Electrical Tester with FieldSense™ technology lets you quickly, safely take True rms
voltage and current measurements without test leads.

Unlike other fork testers that merely detect voltage, the T6-1000 makes actual measurements, without
contacting a live, metallic conductor. Just slide the 17.8 mm open fork, the widest in the industry, over a
conductor and read simultaneous voltage and current values. Or simultaneous frequency and current values.
The open fork works with wires up to AWG 4/0 (120 mm2). Or, you can use the attached test leads to measure
voltage DC to 1000 V.

True rms voltage and current to 200 A AC, 1000 V AC
Resistance 1 Ω to 100 kΩ

Work on any jobsite

Make use of the HOLD button to temporarily freeze the reading on the screen so you can keep working with
the same measurement up. Plus, the display features large, easy-to-read numbers and a backlight for darker
work environments or inside cabinets. The T6-1000 works with the Fluke TPACK ToolPak™ Magnetic Meter Hanger
to make it even more convenient.

How FieldSense™ technology works

FieldSense ™ technology is different than other open fork testers work by interpreting a magnetic field to
show AC current. FieldSense™ detects an electrical field that interacts with a T6 reference signal, showing
a voltage value on the tester’s display.

Specifications: Fluke T6-1000 Electrical Tester

Measurement Specifications
Function	Requires test leads	Range	Resolution	Accuracy^[1]
FieldSense ac voltage true-rms	No	1000 V	1 V	± (3 % + 3 counts) 45 Hz – 66 Hz^[2][3]
FieldSense ac current true-rms	No	200.0 A	0.1 A	± (3% + 3 counts) 45 Hz – 66 Hz
FieldSense frequency (Hz)	No	45 Hz – 66 Hz	1 Hz	± (1% + 2 counts)^[3]
Volts ac true-rms	Yes	1000 V	1 V	± (1.5% + 2 counts) 45 Hz – 66 Hz
Volts dc	Yes	1000 V	1 V	± (1% + 2 counts)
Resistance	Yes	2000 Ω	1 Ω	± (1% + 2 counts)
	Yes	20.00 kΩ	0.01 kΩ
	Yes	100.0 kΩ	0.1 kΩ
Safety		1000 V CAT III 600 V CAT IV
Accuracy^[1]: ± ( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac-coupled, RMS responding. Accuracy^[2]: Add 3 % without an external ground connection. External ground connection required for user wearing insulated gloves, standing on an insulated ladder, or otherwise insulated from earth ground. Accuracy^[3]: FieldSense is specified from 16 V to 100 % of range.

General Specifications
Calibration	1-year calibration cycle
Dimensions	61.1 x 259.3 x 43.8 mm
Jaw opening	17.8 mm
Weight	0.35 kg (0.78 lb)
Temperature	Operating	-10 °C to +50 °C (14 °F to 122 °F)
Temperature	Storage	-30 °C to +60 °C (-22 °F to +140 °F)
Altitude	Operating	2,000 m (6,562 feet)
Altitude	Storage	10,000 m (32,808 feet)
Relative Humidity	0% to 90%, 5 °C to 30 °C (41 °F to 86 °F)
	0% to 75%, 30°C to 40 °C (86 °F to 104 °F)
	0% to 45%, 40°C to 50 °C (104 °F to 122 °F)
Battery Type and Life	2 x AA (IEC LR6); 360 hours continuous, typical; 200 hours using FieldSense
Temperature coefficient	0.1 x (specified accuracy) / °C for <18°C or >28 °C
Temperature coefficient	0.1 x (specified accuracy) / °C for <18°C or >28 °C
Safety	IEC/EN 61010-1: Pollution Degree 2
Electromagnetic Environment	IEC/EN 61326-1: Portable
