Izumi EP-250H
Remote 25T Hydraulic Crimp Head
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $110.00 | $99.00 | $82.50 | $69.30 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $770.00 | $1,386.00 | $2,392.50 | $2,079.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 623 605 for fantastic long term hire rates.
Contact us on 1300 623 605 for fantastic long term hire rates.

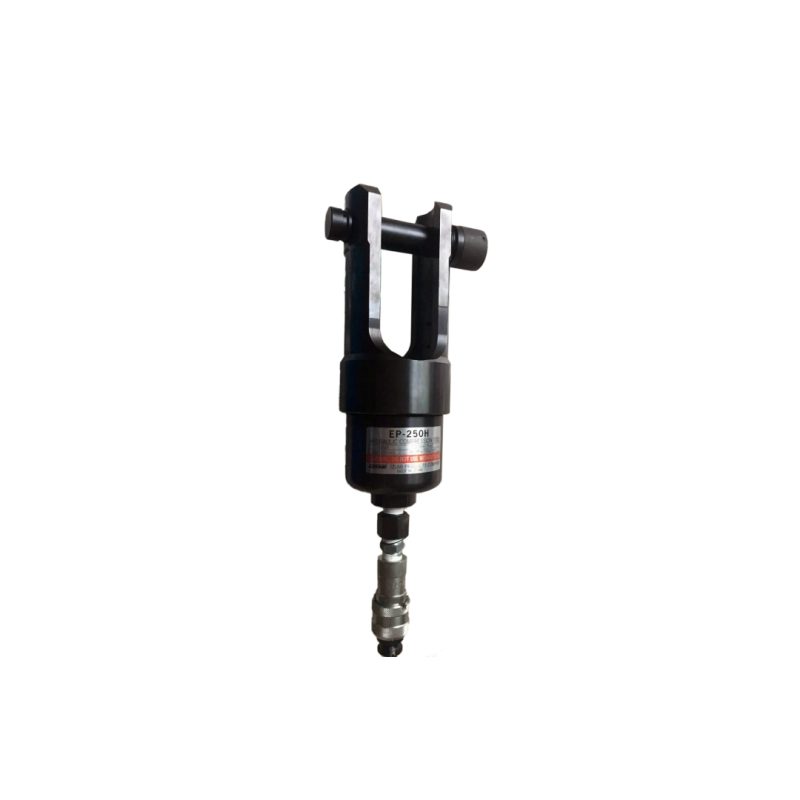

Izumi EP-250H Remote 25 Tonne Hydraulic Crimp Head
Unique twist lock die retaining pin hold top die in place and cannot be misplaced or incorrectly fitted.
- Adaptor die to accept standard 12 tonne shell-type dies available (Model No. 25T-12T)
- Full range of hand, foot, air/hydraulic electric & battery pumps are available
- Alternative hydraulic coupling types available upon request
Specifications
| Model No. | EP-250H |
| Force | 25 Tonne |
| Jaw Opening | 28mm |
| Capacity | 500mm2 AL & 630mm2 CU |
| Oil Volume Required |
93 cc |
| Force at Die Face |
225kN at 700 Bar (10,000 PSI) |
| Size | 330 (L) mm |
| Weight | 6.8kg |
NOTE:Â
- Die Adaptor also available (Model No. 25T-12T).
- Special Dies can be Manufactured to your Specifications.
- Dies Sold Separately.
- A heavy duty metal carry case with die tray is included
