Megger DLRO10HD
Micro-ohmmeter
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $57.20 | $51.48 | $42.90 | $36.04 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $400.40 | $720.72 | $1,244.10 | $1,081.20 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 623 605 for fantastic long term hire rates.
Contact us on 1300 623 605 for fantastic long term hire rates.
About the product

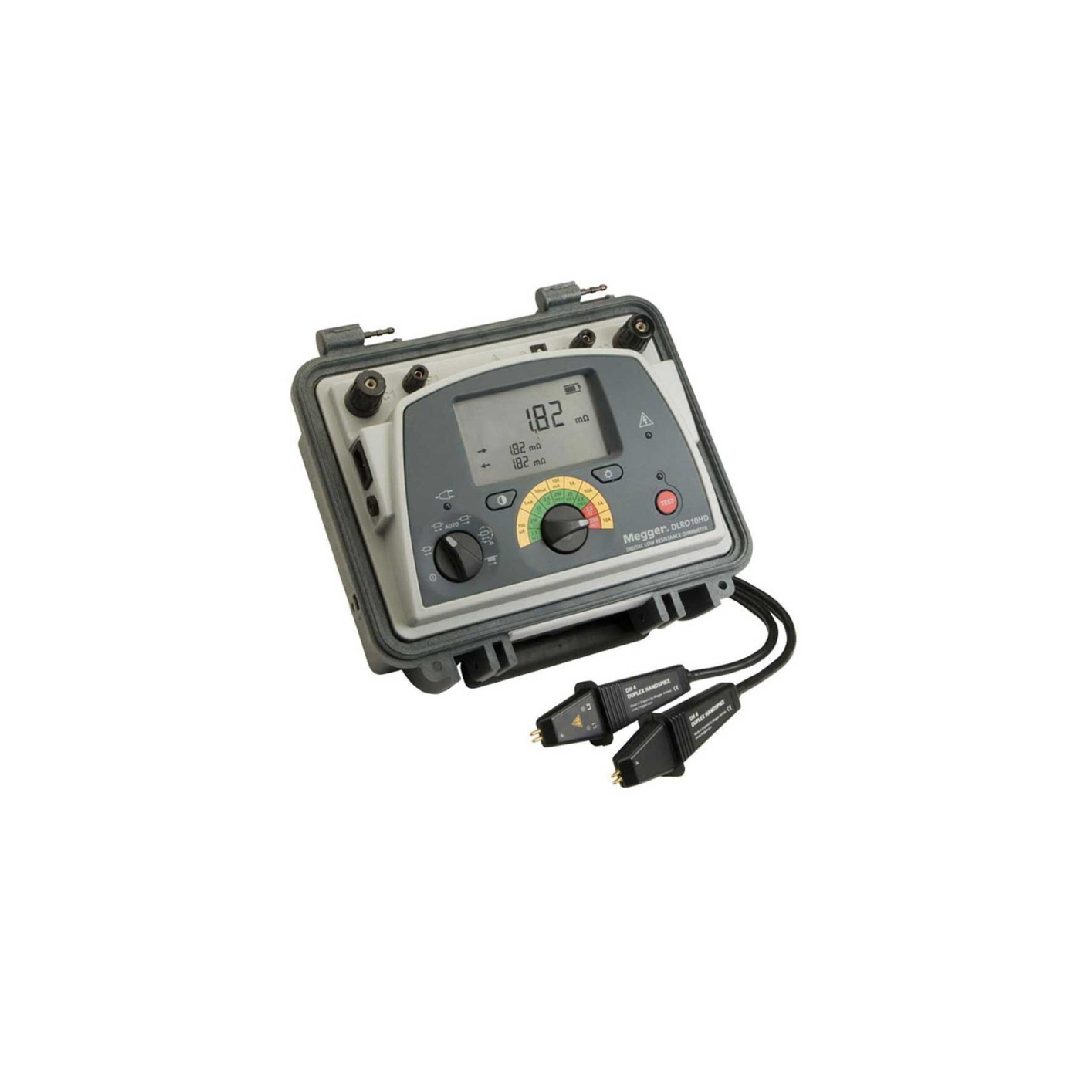

The heavy duty DLRO10HD and DLRO10HDX digital low resistance ohmmeters can deliver a 10 A current into circuits up to
250 mΩ and 1 A into circuits up to 2.5 Ω. The duration of each test can be up to 60 seconds, reducing the time
required for cooling. These units have a high and low output power selection for condition diagnosis.
The DLRO10HD and DLRO10HDX instruments can be powered from their own sealed, rechargeable lead-acid battery or via
mains power. This makes them suitable for continuous testing in repetitive use environments, such as production lines.
Additionally, they come in a rugged case designed for stable ground and bench operation. They are IP54 rated when
operational and IP65 when the lid is closed, which is ideal for working in all weather conditions.
Both units have five test modes: bidirectional (whereby current reversal with averaging cancels thermal EMFs),
unidirectional, automatic, continuous, and inductive. You select the desired mode through a simple rotary control on
the mode selection rotary switch. These rotary switches are easy to operate, even with gloved hands, and the
instruments’ large, clear, backlit LCD makes for easy reading even from a distance.
The DLRO10HDX has some additional abilities over the DLRO10HD. It is rated CAT III 300 V (as long as the optional
terminal cover is fitted to the instrument) and comes with onboard memory storage for up to 200 test results. The
memory functions: ‘delete’, ‘download to PowerDB’, and ‘recalling test results’ are also accessible via the range
selection rotary switch on this model.
Technical specifications
| Data storage and communication | None |
| Max output current (DC) | 10 A |
| Output type | Low and high output power |
| Power source | Battery |
| Power source | Mains |
| Safety features | CATIII 300 V |
