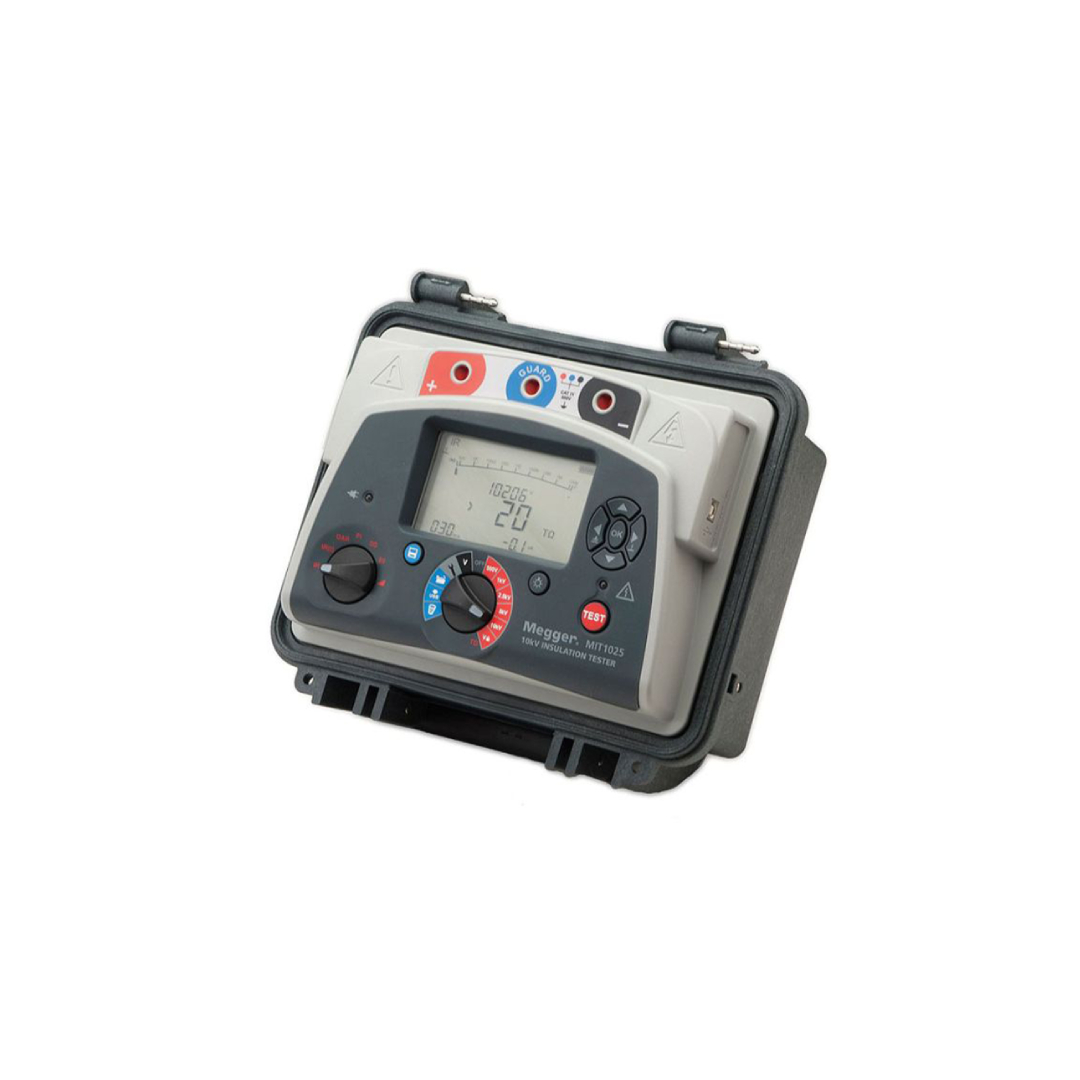

Megger MIT1025

10kV Insulation Resistance Tester

DAILY RATES
Cost per Day	$121.00	$108.90	$90.75	$76.23
Duration (days)	1-7	8-14	15-29	30

TYPICAL HIRE PERIODS
Cost	$847.00	$1,524.60	$2,631.75	$2,286.90
Duration	7 Days	14 Days	29 Days	30 Days

Committing to 3, 6 or 12 months?
Contact us on 1300 623 605 for fantastic long term hire rates.

About the product

The MIT515, MIT525, MIT1025, and MIT1525 insulation resistance testers are compact, light 5 to 15 kV units for the
diagnostic testing and maintenance of high voltage electrical equipment. They are ideal for original equipment
manufacturers (OEMs) and industrial companies.

The MIT series has a full suite of test modes as well as on-board memory and the ability to stream data/download
data to a PC/laptop. They also have rapid-charge batteries and operate from an AC source if the batteries are dead.
Rapid charge batteries enable >60 minutes of testing after a 30-minute charge.

The MIT range includes:

MIT515: 5 kV with IRT and DAR, but with no memory
MIT525: 5 kV IRT with all test modes, including a ramp test plus advanced memory functions with recall to screen,
RTC for time/date stamp of results, and USB drive to PC/PowerDB
MIT1025: 10 kV IRT with all test modes, including a ramp test plus advanced memory functions with recall to screen,
RTC for time/date stamp of results, and USB cable interface to PC/PowerDB
MIT1525: 15 kV IRT with all test modes, including a ramp test plus advanced memory functions with recall to screen,
RTC for time/date.
The MIT1525 is at the top of the range, and it performs insulation resistance tests up to 15 kV with a 30 TΩ maximum
resistance and an accuracy of ±5 % from 1 MΩ up to 3 TΩ.

Safety rated to CAT IV, all these units are smaller and lighter than their predecessors, making them even easier to
carry and store.
