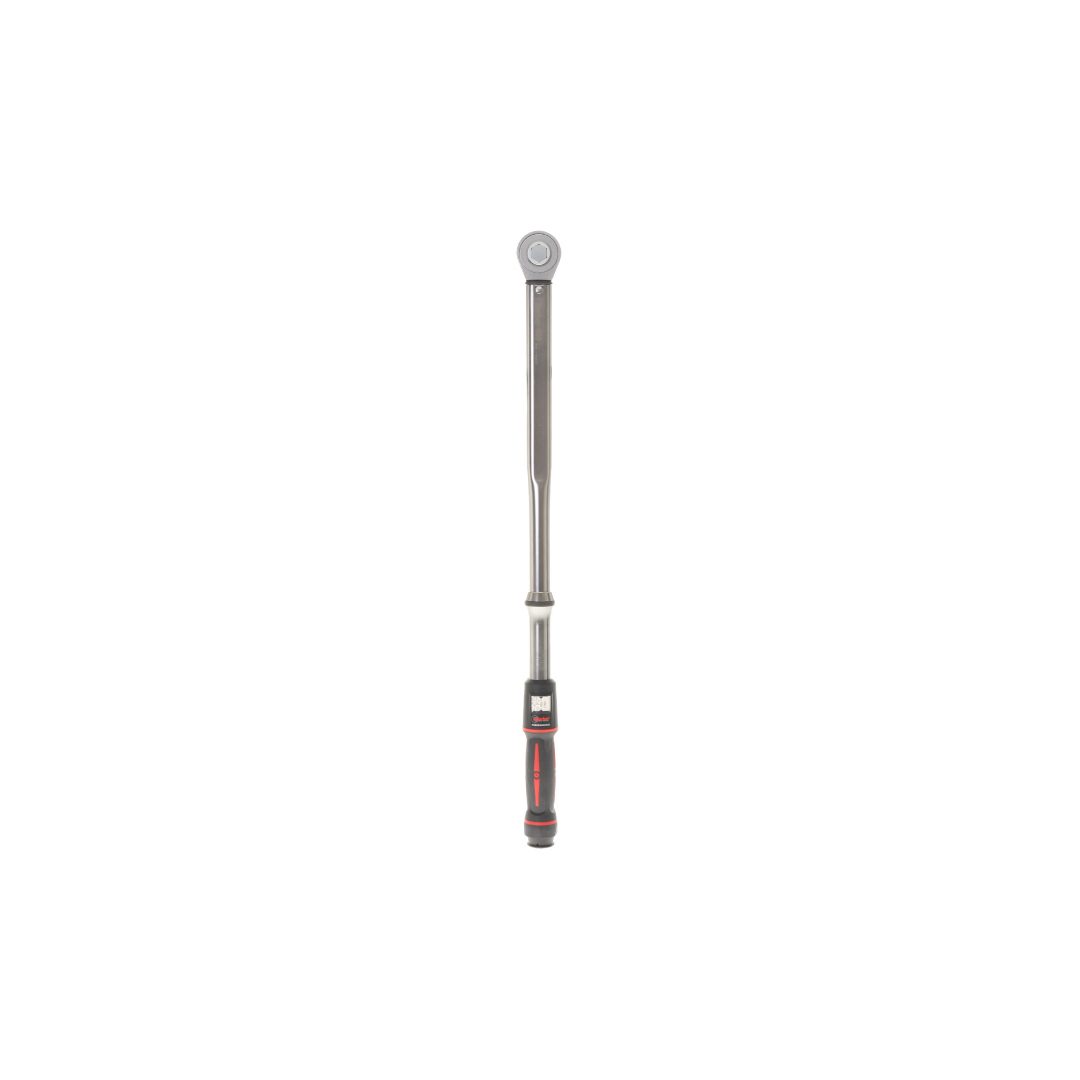

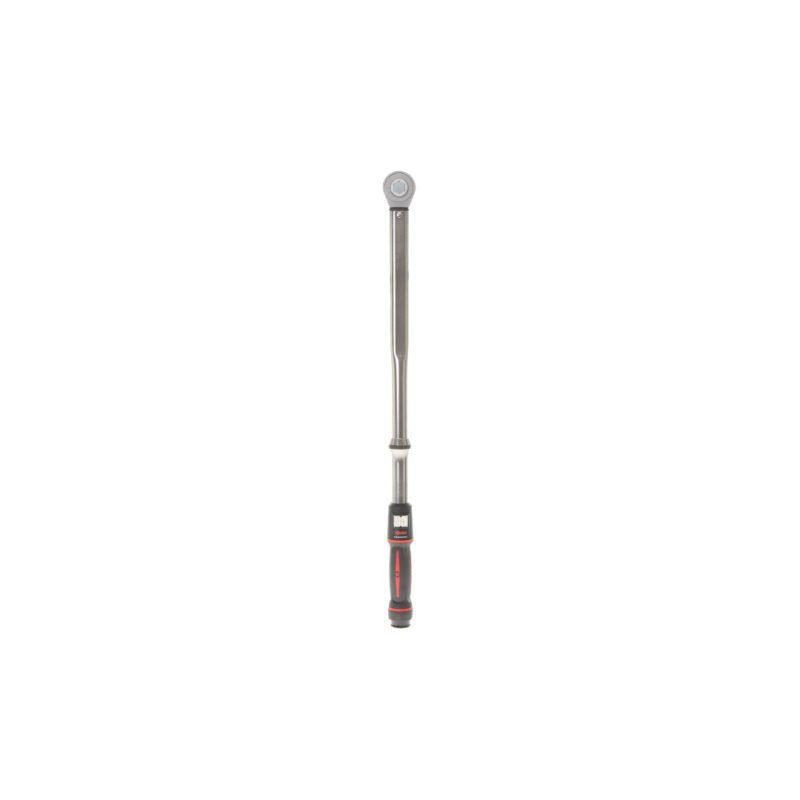

Norbar 80-400Nm 3/4″

Torque Wrench 3/4″ 80-400Nm”

DAILY RATES
Cost per Day	$35.00	$25.00	$15.00	$10.00
Duration (days)	1-7	8-14	15-29	30

TYPICAL HIRE PERIODS
Cost	$245.00	$350.00	$435.00	$300.00
Duration	7 Days	14 Days	29 Days	30 Days

Committing to 3, 6 or 12 months?
Contact us on 1300 623 605 for fantastic long term hire rates.

DESCRIPTION

‘P’ Type Torque Wrenches are designed for the production environment where they will be set and
then dedicated to a particular application. There is no scale, the wrench must be set against a
torque testing device such as Norbar’s Professional Torque Tester. The ratchets on these models
are robustly engineered for strength and durability. The strength and high wear resistance comes
from a coarse tooth pattern while a principle of offset ratchet pawls gives a narrow engagement
angle. The square drive is not only a robust design but allows the wrench to be used for torque
control in both the clockwise and anti clockwise directions, by removing the square and
re-inserting on the other side of the ratchet
head.

Part number:
13056
EAN Bar Code:
5060207560825
NATO number:
–
Accuracy:
±3%
Operates between:
60.00 –
300.00
lbf·ft

80.00 –
400.00
N·m

FEATURES

Setting system is designed to discourage unauthorised alteration.
Coloured end seals are provided to identify the wrench to a
particular operator, torque setting or calibration period.
Available with a high quality ratchet or as a ‘Torque Handle’.
Retained square drive will not pull out of the head when the socket
is removed.
Supplied in a moulded box for storage and protection.
On request ‘P’ Type wrenches can be set, marked with the setting and
certified for production line applications requiring a sealed torque
setting. Only if a pre-set has been requested will the tool be
supplied with a Declaration of Conformance

TECHNICAL SPECIFICATIONS

Length: 664 mm
Square Size: 3/4″
Ratchet Type: Industrial
Ratchet Diameter: 49 mm
Reaction Plate Weight: 60
