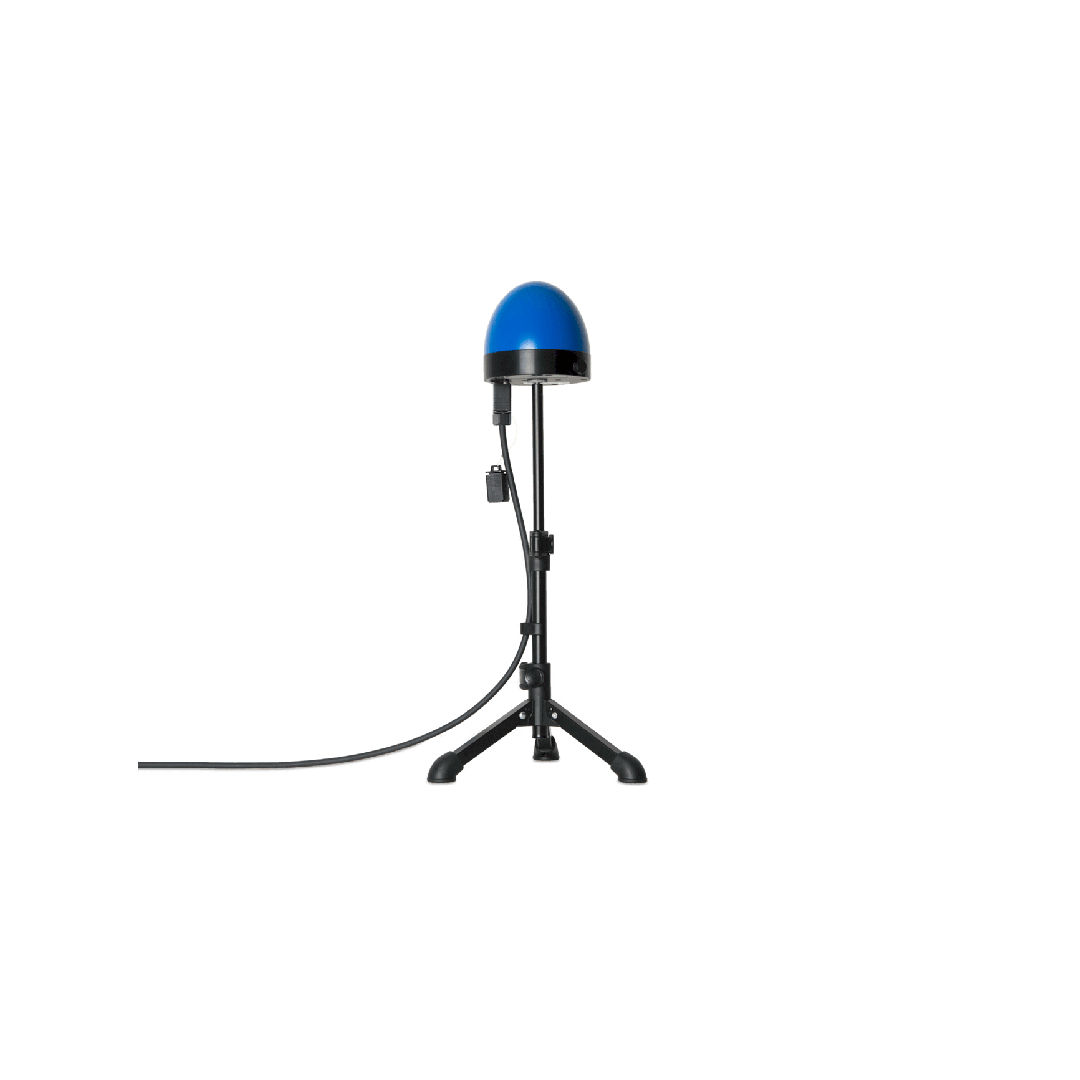

Omicron CMGPS 588
Antenna-integrated GPS
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $94.50 | $85.00 | $70.00 | $60.00 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $661.50 | $1,190.00 | $2,030.00 | $1,800.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 623 605 for fantastic long term hire rates.
Contact us on 1300 623 605 for fantastic long term hire rates.
The CMGPSÂ 588 synchronization unit is an antenna-integrated GPS controlled time reference. It is optimized
for outdoor usage and works as a PTP Âgrandmaster clock according to IEEE 1588-2008 / IEEE C37.238-2011 Power
Profile.
CMGPSÂ 588 is automatically ready for operation shortly after providing power supply via Power over
Ethernet (PoE). The distance between the CMGPSÂ 588 and the test set can be extended up to 95 m / 312 ft by
using extension cables (one 15 m/49 ft standard Ethernet cable plus two 40 m/131 ft rugged Ethernet cable
reels).
Applications
The CMGPSÂ 588 can be used to synchronize the time base of an OMICRON test set:
- Control one OMICRON test set at a predetermined point in time (triggering the starting point of a test
process) or - Synchronize the starting point of a test process of two or more OMICRON test sets or
- Accurately time-stamp data captured by an OMICRON test set
The compatible test sets are: ARCO 400, CMC 356, CMC 256plus, CMC 430, CMC 353
with NET-1B, NET-1C or NET-2, DANEOÂ 400
