Phenix 6CB5010-3
AC 50KV HIPOT
| DAILY RATES | ||||
|---|---|---|---|---|
| Cost per Day | $230.00 | $237.60 | $171.00 | $144.00 |
| Duration (days) | 1-7 | 8-14 | 15-29 | 30 |
| TYPICAL HIRE PERIODS | ||||
|---|---|---|---|---|
| Cost | $1,610.00 | $3,326.40 | $4,959.00 | $4,320.00 |
| Duration | 7 Days | 14 Days | 29 Days | 30 Days |
Committing to 3, 6 or 12 months?
Contact us on 1300 623 605 for fantastic long term hire rates.
Contact us on 1300 623 605 for fantastic long term hire rates.

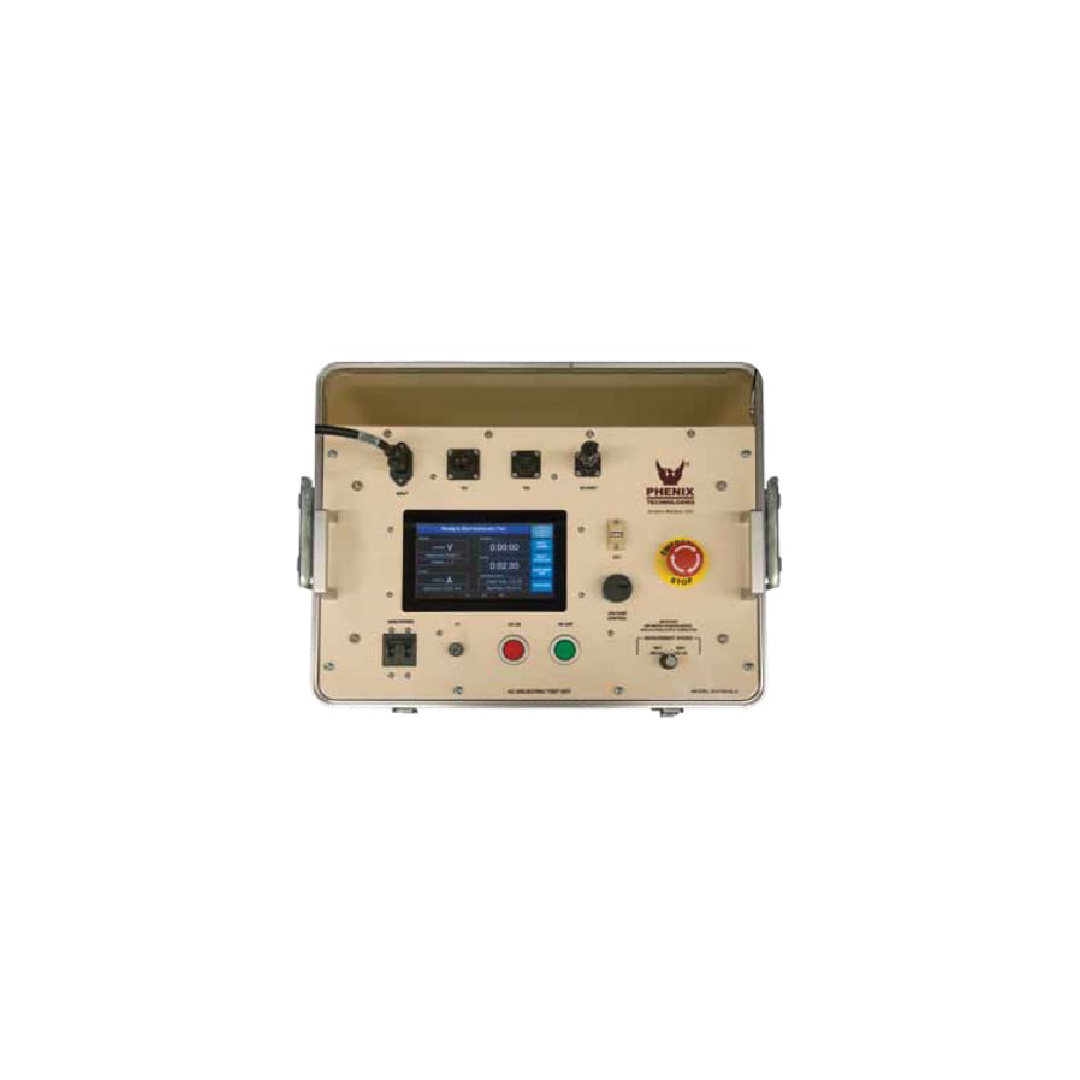

The Phenix 6CB50/10-3 Field and Lab AC Dielectric Test Set is a complete test system in a mobile package, simple to
set-up and operate, lightweight and ruggedly constructed. It consists of a combination control and regulator
enclosure
and a separate high voltage section. The 6CB line features a 7″ touch screen display with auto-ranging meters,
automated operation, and data acquisition. This model offers an output range of ≈0-10 kV, 300 mA and ≈0-50 kV, 60
mA.
The Metering Guard Mode allows accurate measurements of the high voltage test specimen leakage current by bypassing
stray capacitive currents. The high voltage section consists of a specially designed oil insulated high voltage
transformer characterized by the use of an isolating cylindrical housing mounted on a rugged steel base. The high
voltage output is equipped with a corona free aluminum shielding electrode. The high-quality design and construction
are key to the superior partial discharge performance of the 6CB line.
The system arrives ready to use with all power and interconnect cables included; the simple setup allows this system
to be ready for testing in minutes. The rugged construction and dependability, backed by long-term warranty make the
6CB line an ideal choice for your high voltage testing requirements.
Manufacturer Specs
| Model: 6CB50/10-3 Specifications | |
| Description | Field and Lab AC Dielectric Test Set |
| Input | |
| Voltage/Current | 110-120 V, 16 A, 220-240 V, 8 A |
| Frequency | 50/60 Hz |
| Output | |
| Voltage/Current | ≈ 0-10 kV, 300 mA and ≈ 0-50 kV, 60 mA |
| Duty Cycles | |
| 5 min ON/15 min OFF | 3 kVA |
| 15 min ON/1 hr OFF | 2 kV |
| 1 hr ON/1 hr OFF | 1.5 kVA |
| Features | |
| Compensation | 50% Inductive Reactive |
| Metering Accuracy | 0.8% Reading +0.2% of range |
| Voltmeter Range(s) | 0-10/50 kV |
| Currentmeter Range(s) | 0-200 µA/2 mA / 20 mA/300 mA |
| Output | HV Electrode |
| PD | |
| PD level | <10 pC |
| Optional up to 100kV | <3 pC |
| Cables Included | |
| Power Cable | 10’(3048 mm) |
| Power Interconnect | 10’(3048 mm) |
| Meter Interconnect | 10’(3048 mm) |
| Ground | 10’(3048 mm) |
| Return | 10’(3048 mm) |
| Dimensions & Weights (approx.) | |
| Controls | Dimensions: 16.5″L (419mm) x 15.25″W (388mm) x 11.25″H (286mm) Weight: 34 lbs(15 kgs) |
| HV Tank(s) | Dimensions: 14″L (356mm) x 14″W (356mm) x 17″H (432mm) Weight: 80 lbs (36 kgs) |
| HV Divider | Internal |
| Cables | Weight: 6 lbs (3 kgs) |
| Total Unit Weight | 120 lbs (55 kgs) |
| Shipping Sizes (approx.) | |
| Package 1 | Dimensions: 21″L (533mm) x 21″W (533mm) x 16″H (406mm) Weight: 37 lbs(17 kgs) |
| Package 2 | Dimensions: 20″L (508mm) x 20″W (508mm) x 20″H (508mm) Weight: 86 lbs (39 kgs) |
| Total Shipping Weight | 123 lbs (55 kgs) |
